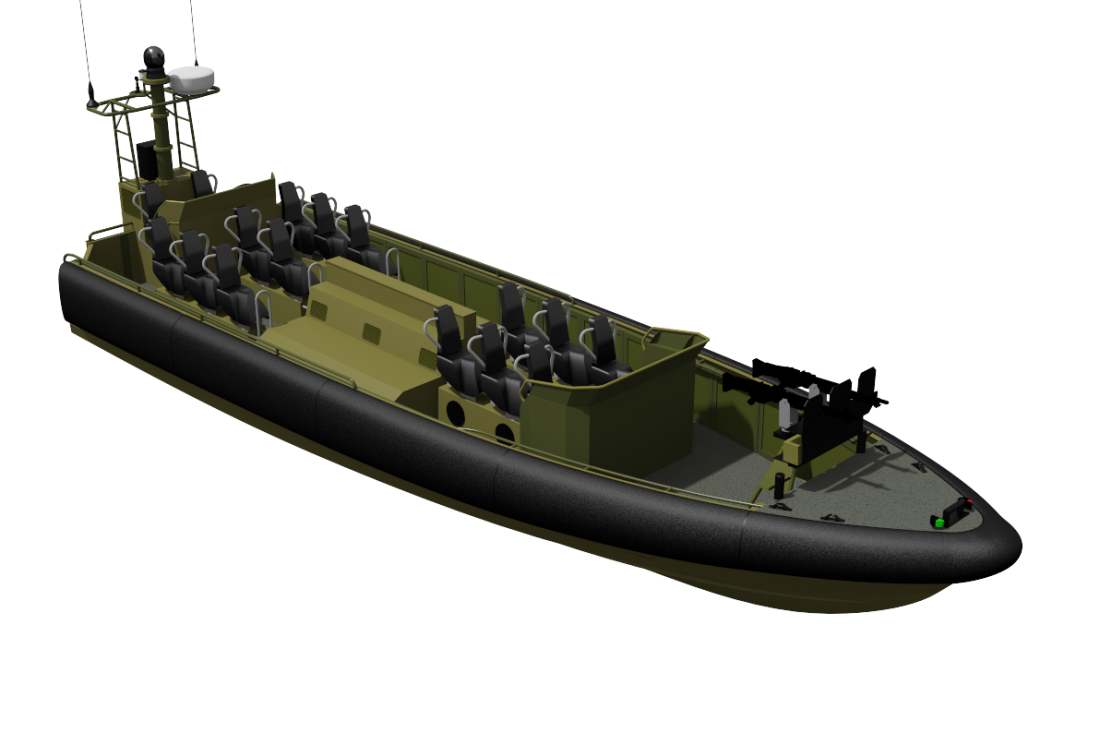

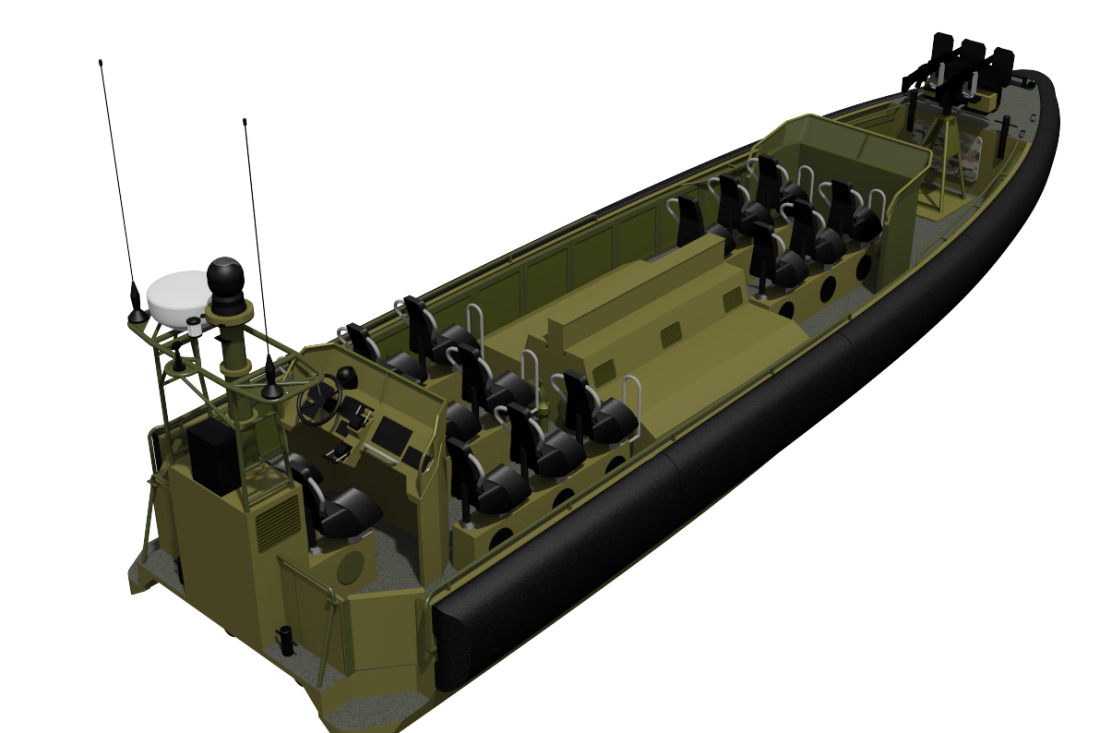

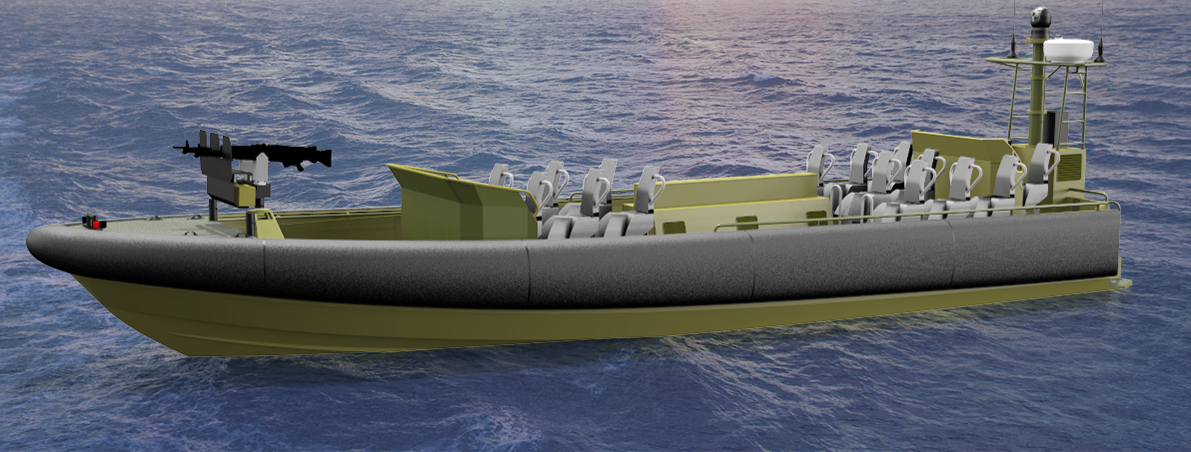

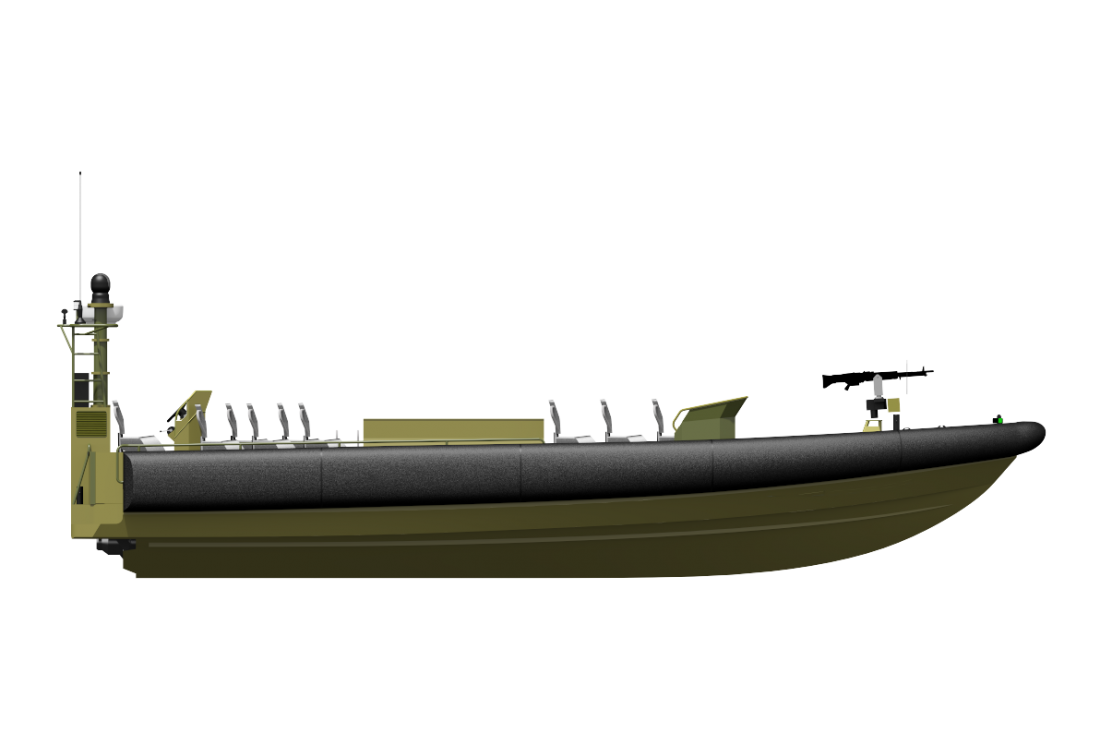

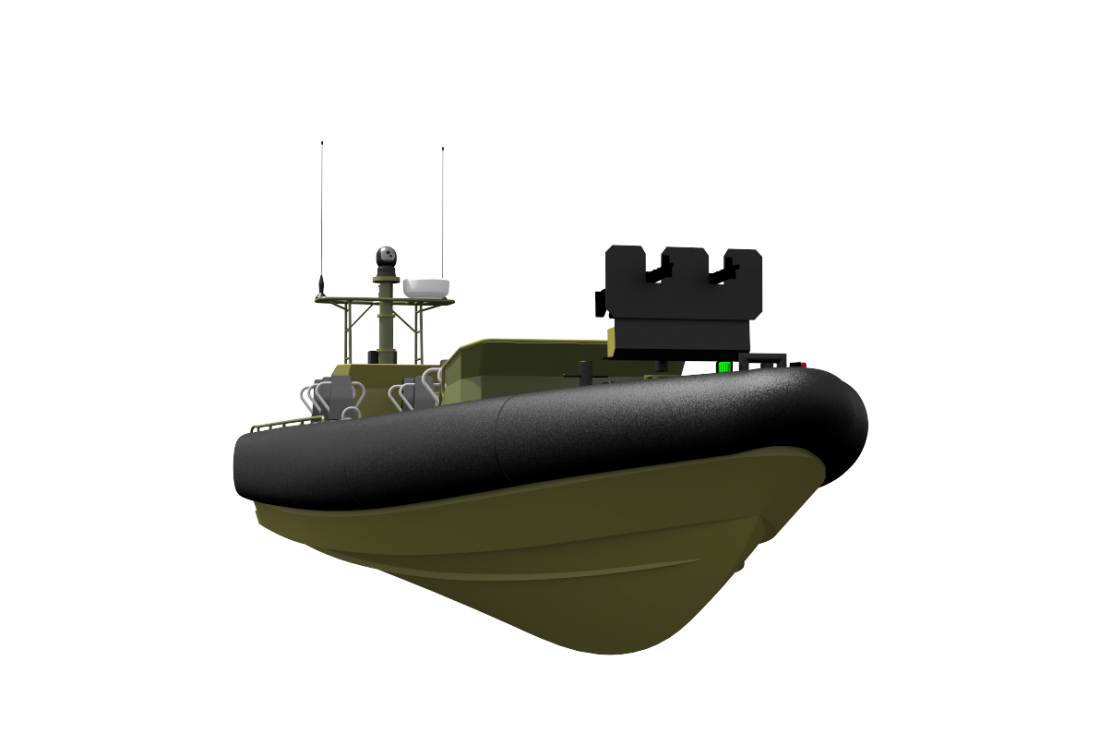

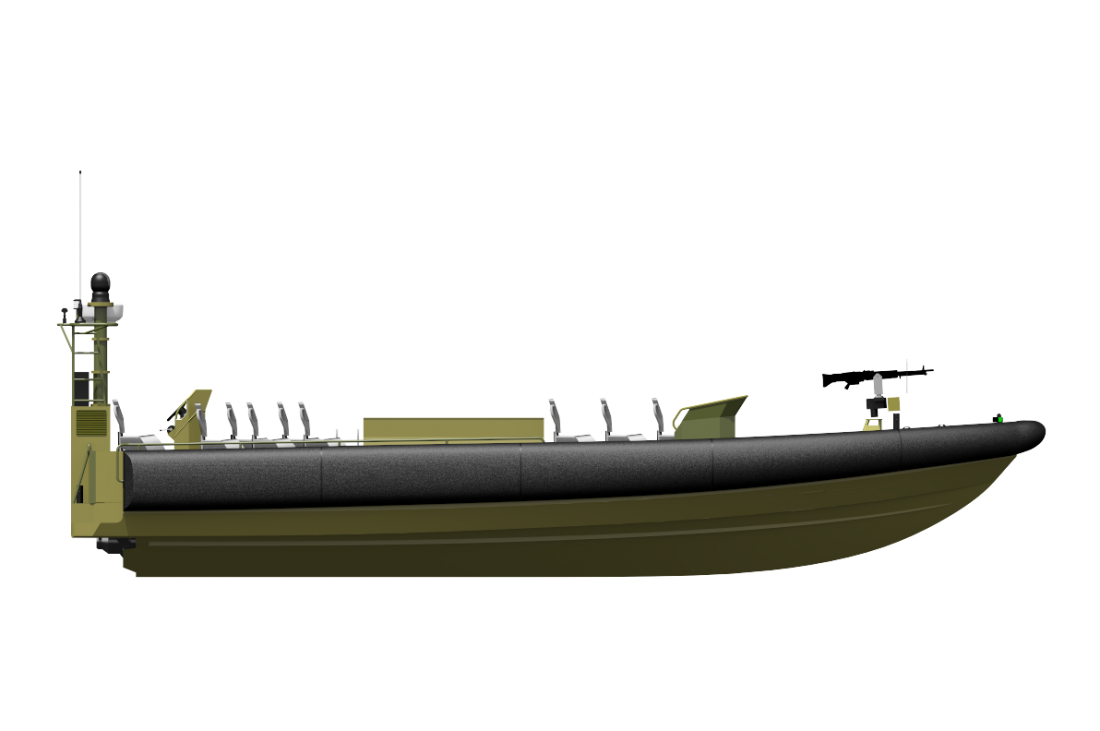

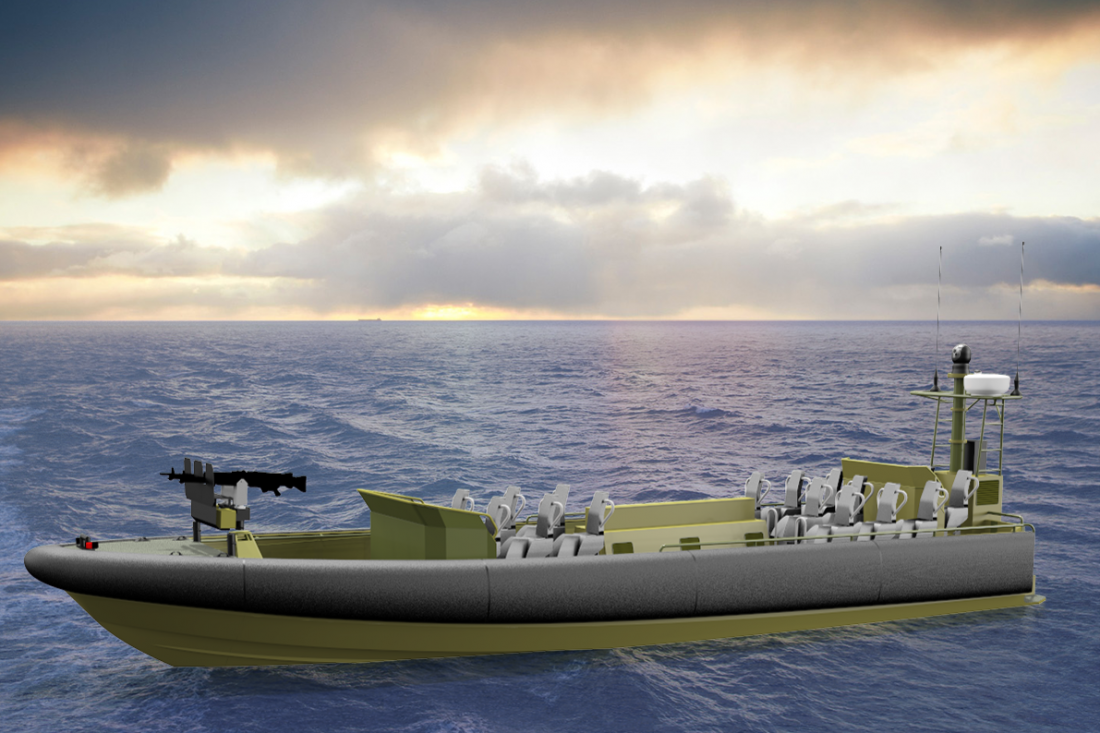

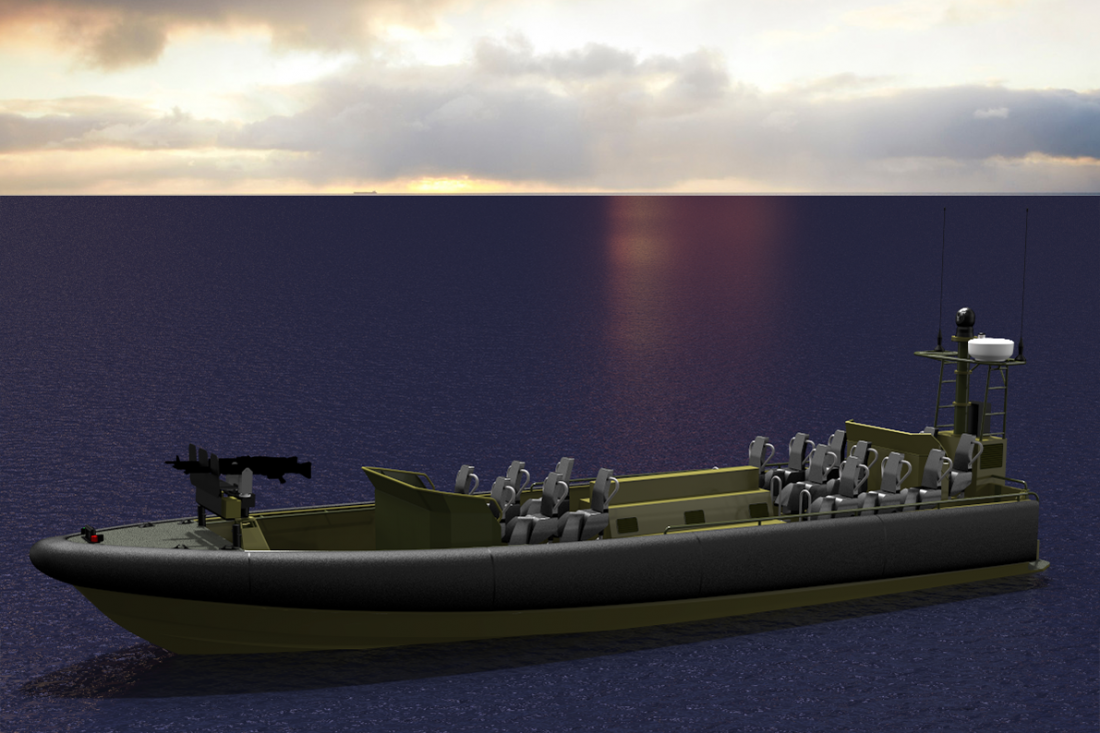

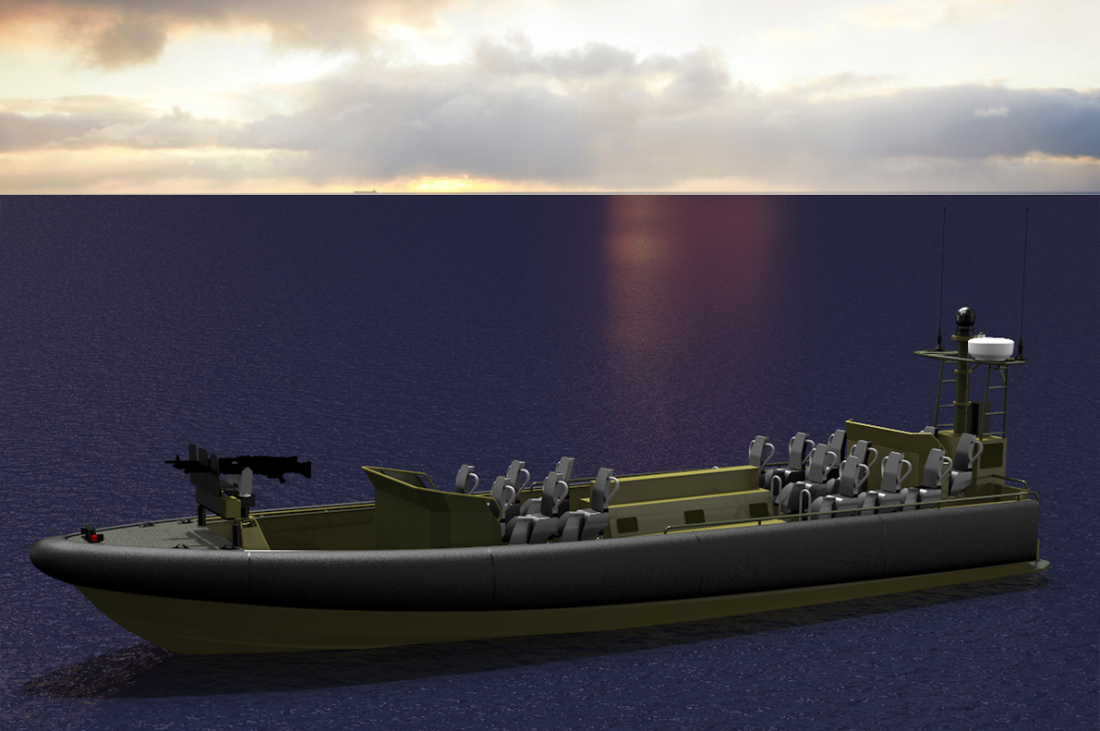

The 11m Offshore Raiding Craft (ORC) is a development of the 9m ORC which is in-service with the UK Royal Marines. This 11m Aft Console Variant is designed to accommodate 14 troops all seated on Ullman Patrol XLT suspension seats. The coxswain and navigator are also seated on suspension seats.

This crafts primary role is the delivery of troops to shore in a fit to fight condition. A single weapon pedestal is fitted forward capable of mounting either twin GPMG or single HMG.
The ORC is designed with portability in mind. It can be transported and launched by trailer, features 4 lifting points inboard allowing it to be under slung from a helicopter and has tie down points for securing it to the deck of a ship or hold of an aircraft. The lifting points coupled with a painter release system means that the boat can be launched from a mother ship whilst underway.

  • Length OA (inc. Fender): 11.34m
  • Beam OA (inc. Fender): 3.46m
  • Draught: 0.70m light, 0.84m loaded
  • Displacement: 6400 kg inc fuel & 2 crew light load, 8500 kg loaded
  • Construction Material: Fabricated Aluminium (Grade 5083)
  • Max Speed: 40 knots
  • Speed Light Load 40 knots
  • Speed Heavy Load 30 knots
  • Range In excess of 160nm
  • Turning 1.5 boat lengths at max speed
  • Acceleration 0 to 30 Knots in 10 seconds
  • Stopping 1.5 boat lengths from max speed
  • Engines Twin Yanmar 6LY3 STP High Speed diesel engines developing 440bhp at 3300rpm
  • Gearboxes ZF280-1 reduction gearbox
  • Propulsion Twin Rolls Royce (Kamewa) FF270 Waterjets
  • Electrical 12V DC, Insulated return
  • Main Fuel Tank 800 Litres
  • Reserve Fuel Tank 85 Litres
  • Troop Capacity 14 Troops
  • Total Payload Capacity Combination of troops, equipment and weapons up to 2100kg
  • Communications Marine VHF
  • Navigation Chart Plotter with DGPS
  • Elastomer covered closed cell PU foam fender
  • Removable seating and fairings for ease transportation and flexibility of function
  • Forward pedestal for single or twin GPMG
